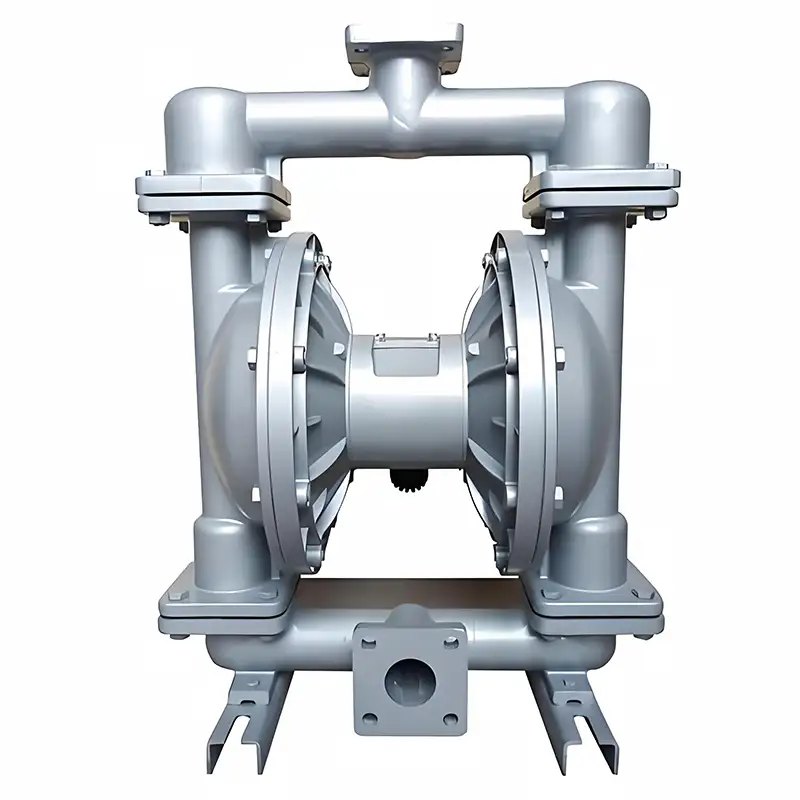

Food Grade Diaphragm Pump

The diaphragm is available in FDA-compliant PTFE or EPDM materials, ensuring safe contact with food and pharmaceutical media. Combined with a sanitary clamp connection design, the pump allows quick disassembly, convenient maintenance, and compatibility with CIP (Clean-In-Place) cleaning processes.

With gentle diaphragm pumping characteristics, Xiafeng Food Grade Diaphragm Pump transfers viscous and particle-containing products while minimizing damage to the original texture and quality of the material.

Hygienic Design for Food and Pharmaceutical Processing

In food and pharmaceutical production, the pumping system directly affects product quality. The Food Grade Diaphragm Pump adopts a sanitary stainless steel structure designed to minimize contamination risks during fluid transfer.

The 304/316L stainless steel wetted surface is electro-polished to achieve a surface roughness of Ra≤0.8μm. The smooth internal passage reduces material accumulation and helps prevent the formation of difficult-to-clean areas.

This hygienic structure makes the pump suitable for production environments where strict cleaning procedures and material safety requirements are necessary.

Gentle Transfer Without Product Damage

Many food products contain sensitive ingredients, particles, or viscous components that can be affected by excessive mechanical force.

The diaphragm operating principle provides a low-shear transfer process, making the pump suitable for products such as sauces, jams, dairy materials, and beverage concentrates.

Compared with high-speed centrifugal pumps, the diaphragm design helps maintain the original characteristics of the transferred material, including texture and particle integrity.

Food Contact Material Selection

Material selection is critical for sanitary pumping applications.

Xiafeng Food Grade Diaphragm Pump uses:

• 304/316L stainless steel pump construction
• FDA-compliant PTFE or EPDM diaphragm materials
• Sanitary connection options

316L stainless steel is commonly selected for applications requiring higher corrosion resistance and stricter hygiene requirements, especially in pharmaceutical and premium food processing environments.

Different configurations can be customized according to the transported medium, cleaning method, and production requirements.

Flexible Cleaning and Installation

The sanitary clamp connection design allows quick assembly and removal during production maintenance.

The pump supports:

• CIP cleaning procedures
• Fast component inspection
• Easy replacement of wearing parts
• Flexible integration into production lines

The self-priming capability also allows the pump to transfer materials directly from storage containers or raw material tanks to processing equipment, improving production flexibility.

Technical Specifications

Applications

Food Grade Diaphragm Pump is widely used in production environments where hygiene and gentle handling are required.

In food processing plants, it is used for transferring sauces, jams, honey, chocolate slurry, edible flavors, and beverage ingredients. The low-shear pumping process helps maintain product consistency during transfer.

In beverage and dairy production, the sanitary stainless steel construction supports clean processing requirements for milk products, liquid ingredients, and fermentation materials.

For pharmaceutical and biotechnology applications, the pump provides a hygienic solution for transferring liquid formulations and process fluids where contamination control is important.

Why Choose Xiafeng?

Xiafeng combines precision manufacturing experience with industrial pump production capabilities to provide sanitary fluid transfer solutions for global customers.

The company focuses on material selection, processing accuracy, and structural reliability to meet the requirements of food, beverage, and pharmaceutical industries.

From stainless steel configuration selection to diaphragm material matching, Xiafeng can provide customized solutions according to different production conditions, cleaning requirements, and application environments.

For food equipment manufacturers, processing plants, and engineering contractors, Xiafeng provides reliable OEM supply and long-term cooperation support.

FAQ

Q: What makes a diaphragm pump suitable for food processing?

A: A food grade diaphragm pump uses sanitary materials, smooth internal surfaces, and food-contact-approved components to reduce contamination risks during product transfer.

Q: What is the difference between a food grade diaphragm pump and a standard diaphragm pump?

A: Standard diaphragm pumps are mainly designed for industrial fluids, while food grade models focus on hygiene requirements, using stainless steel construction, FDA-compliant materials, and easy-clean designs.

Q: Can this pump handle viscous food products?

A: Yes. The diaphragm pumping principle is suitable for transferring high-viscosity products such as sauces, honey, syrup, chocolate slurry, and concentrated food materials.

Q: Does the food grade diaphragm pump support CIP cleaning?

A: Yes. Models with sanitary clamp connections can be integrated into CIP cleaning systems, allowing efficient cleaning without frequent disassembly.

Q: Should I choose 304 or 316L stainless steel?

A: 304 stainless steel is suitable for many general food applications, while 316L is recommended for applications requiring higher corrosion resistance, such as dairy, pharmaceutical, and more demanding processing environments.

Q: Can Xiafeng provide sanitary customization?

A: Yes. Xiafeng can customize pump materials, connections, diaphragm materials, and configurations according to production requirements and hygiene standards.
