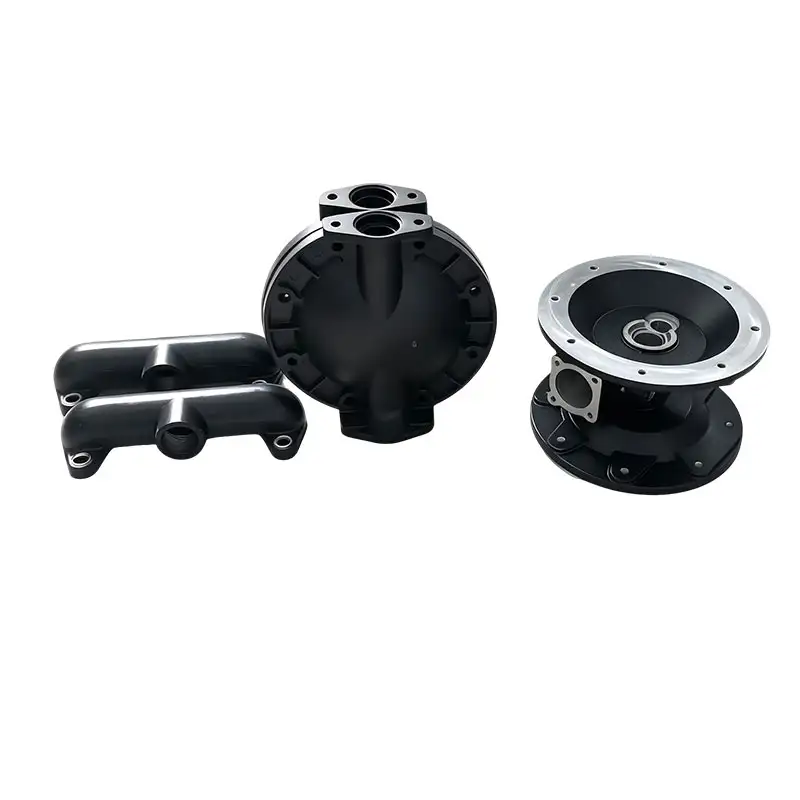

1 Inch Diaphragm Pump

The pump is available in pneumatic and electric drive configurations, with material options including aluminum alloy, stainless steel, PP, and PVDF. This allows customers to select suitable combinations according to the characteristics of the transferred medium, such as chemical liquids, coatings, wastewater, or process fluids.

Xiafeng supplies 1 Inch Diaphragm Pump solutions for equipment manufacturers, industrial distributors, and end users requiring reliable performance in compact pumping systems.

Compact Size with Industrial Performance

The DN25 (1 inch) connection size makes this diaphragm pump a popular choice for applications where installation space is limited but stable flow output is still required.

Compared with larger diaphragm pump models, the 1 inch version requires less piping space and offers lower installation costs. At the same time, it maintains the advantages of diaphragm pumping technology, including self-priming capability, dry-running tolerance, and the ability to handle liquids containing small solid particles.

For workshops and processing systems requiring flexible material transfer, the 1 inch diaphragm pump provides a convenient and economical solution.

Multiple Configurations for Different Applications

The performance of a diaphragm pump largely depends on material selection and drive configuration.

For general industrial applications, aluminum alloy models provide a lightweight and cost-effective option. Stainless steel versions are suitable for applications requiring better corrosion resistance and durability. PP and PVDF models are commonly selected for chemical transfer where non-metallic wetted materials are preferred.

The pump can also be equipped with different diaphragm materials, including nitrile rubber, neoprene, fluororubber, and PTFE, allowing customers to match the pump with different liquid properties and operating environments.

Suitable for Replacement and Equipment Integration

The 1 inch diaphragm pump size is widely used because of its compatibility with common industrial piping systems.

Many users select this specification when replacing existing pumps or integrating pumps into compact equipment. Standard threaded connections, including NPT and BSPT options, simplify installation and reduce modification requirements.

For OEM equipment manufacturers, Xiafeng can provide customized configurations according to flow requirements, connection standards, and application conditions.

Technical Specifications

Common Industrial Applications

The 1 Inch Diaphragm Pump is widely used in applications requiring moderate flow rates and compact installation.

In chemical processing workshops, it is commonly used for transferring raw materials, additives, and chemical solutions. In painting and coating systems, the pump can handle paint circulation and liquid transfer requirements.

For wastewater treatment and environmental equipment, the 1 inch size is often selected for chemical dosing, waste liquid movement, and auxiliary transfer processes.

Its compact structure also makes it suitable for mobile equipment, maintenance systems, and small production lines.

Why Choose Xiafeng 1 Inch Diaphragm Pump

Xiafeng provides industrial diaphragm pump solutions based on practical application requirements rather than standard specifications alone. Customers can select suitable materials, diaphragm options, and drive methods according to their working conditions.

With experience in precision manufacturing and industrial component production, Xiafeng focuses on dimensional accuracy, stable quality, and reliable supply for global B2B customers.

For distributors, equipment manufacturers, and industrial users, the 1 inch diaphragm pump provides a versatile option that combines easy installation, flexible configuration, and dependable operation.

FAQ

Q: What does 1 Inch Diaphragm Pump mean?

A: A 1 Inch Diaphragm Pump refers to a diaphragm pump with DN25 (1 inch) inlet and outlet ports. It is one of the most commonly used sizes for small and medium industrial fluid transfer applications.

Q: How much flow can a 1 inch diaphragm pump provide?

A: The typical flow capacity is around 6 m³/h (100 L/min), depending on the pump model, pressure conditions, medium characteristics, and drive method.

Q: Is a 1 inch diaphragm pump suitable for chemical liquids?

A: Yes. With suitable materials such as PP, PVDF, stainless steel, and PTFE diaphragms, the pump can be configured for different chemical transfer applications.

Q: Can a 1 inch diaphragm pump replace existing QBY or QBK models?

A: In many cases, DN25 diaphragm pumps can be used as replacements for common 1 inch industrial diaphragm pumps. However, installation dimensions and connection standards should be confirmed before replacement.

Q: Should I choose pneumatic or electric drive?

A: Pneumatic models are preferred for hazardous environments or applications requiring dry running capability, while electric models are suitable for fixed systems requiring continuous operation.

Q: What industries commonly use 1 inch diaphragm pumps?

A: They are commonly used in chemical processing, coating systems, wastewater treatment, equipment manufacturing, industrial dosing, and general fluid transfer applications.
