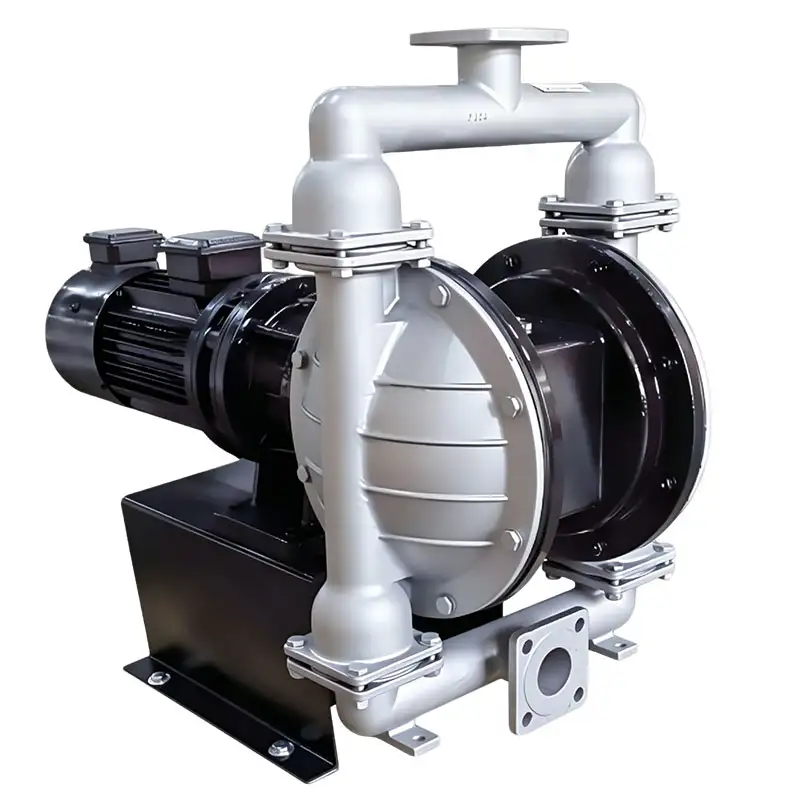

Electric Diaphragm Pump

Compared with air operated diaphragm pumps, the electric design does not require a compressed air supply, allowing direct connection to a power source for operation. This makes it especially suitable for fixed installation systems where compressed air equipment is unavailable or unnecessary.

Featuring a diaphragm isolation structure, the Electric Diaphragm Pump separates the pumped medium from the drive components, eliminating shaft seal leakage risks. It can handle corrosive liquids, particle-containing fluids, and high-viscosity media, making it widely used in chemical dosing, water treatment, coating systems, and industrial material transfer applications.

Stable Electric Drive Performance

Powered by an electric motor, the pump provides continuous and stable flow output without requiring an external compressed air system, making it suitable for long-term fixed installation applications.

Core Advantages

1. Leak-Free Diaphragm Isolation Design

The diaphragm structure prevents direct contact between the fluid and mechanical drive components, reducing leakage risks and improving operational reliability.

2. Variable Speed Control Available

With frequency conversion speed regulation, users can precisely adjust flow output according to different process requirements, improving system control and efficiency.

3. Corrosion & Chemical Resistance

Pump wetted parts are available in multiple materials including stainless steel, PP, PVDF, and fluorine-lined options to handle different chemical media.

4. Explosion-Proof Motor Option

The explosion-proof motor version is designed for hazardous environments such as petroleum, chemical processing, and coating industries.

5. Stable Flow Output for Fixed Installations

Unlike air-operated pumps, the electric design does not require a compressed air supply, allowing direct connection to a power source for operation. This makes it especially suitable for fixed installation systems.

Technical Specifications

Working Principle

The Electric Diaphragm Pump operates through an electric motor connected with a mechanical drive mechanism. The motor converts rotary motion into reciprocating movement through a crank linkage or eccentric structure, continuously moving the diaphragm back and forth.

During operation:

1. The diaphragm moves backward to create negative pressure and draw liquid into the chamber.
2. The diaphragm moves forward to compress the chamber and discharge the liquid.
3. The check valve system controls the fluid direction to achieve continuous pumping.

This working principle enables reliable transfer of various liquids while maintaining isolation between the medium and mechanical components.

Material Options

Pump Body Materials

Stainless Steel: Suitable for applications requiring corrosion resistance and mechanical strength.

PP (Polypropylene): Ideal for chemical liquids and general corrosive media.

PVDF: Provides enhanced chemical resistance for demanding industrial environments.

Fluorine-Lined Material: Suitable for highly corrosive chemical applications.

Diaphragm Materials

Available options include: NBR (Nitrile Rubber), FKM (Fluoro Rubber), PTFE (Teflon). The appropriate diaphragm material can be selected according to chemical compatibility, temperature, and fluid properties.

Applications

Xiafeng Electric Diaphragm Pump is widely applied in industries requiring stable flow control and reliable liquid transfer.

Chemical Dosing Systems: Used for accurate transfer of chemical agents, additives, and treatment solutions.

Water Treatment: Suitable for wastewater treatment, chemical dosing, and environmental protection equipment.

Coating & Painting Industry: Handles paints, coatings, solvents, and high-viscosity materials.

Daily Chemical Production: Used for transferring liquid raw materials in detergent, cosmetic, and chemical production processes.

Industrial Equipment: Provides reliable pumping solutions for fixed processing systems and automated equipment.

Electric Diaphragm Pump vs Air Operated Diaphragm Pump

Why Choose Xiafeng Electric Diaphragm Pump

Integrated Manufacturing Capability

Xiafeng combines mold development, precision manufacturing, machining, and surface treatment capabilities to support customized industrial components and pump solutions.

Flexible Configuration Options

Different motor types, materials, diaphragm structures, and specifications can be selected according to application requirements.

Reliable Quality Control

Strict production management and inspection processes ensure stable performance and consistent product quality.

Industrial Application Experience

Xiafeng products are applied in chemical, environmental protection, automotive, industrial equipment, and other fields.

OEM Customization Support

From product design optimization to manufacturing, Xiafeng provides flexible solutions for global industrial customers.

Long-Term Supply Capability

Professional production processes and stable capacity support continuous cooperation with distributors and equipment manufacturers.

FAQ

Q: What is an Electric Diaphragm Pump used for?

A: An Electric Diaphragm Pump is mainly used for transferring chemicals, wastewater, coatings, and other industrial fluids requiring stable flow and leak-free operation.

Q: What is the difference between an electric diaphragm pump and an air operated diaphragm pump?

A: The main difference is the power source. Electric diaphragm pumps use motors and do not require compressed air, making them suitable for fixed installations with stable power supply.

Q: Can an Electric Diaphragm Pump handle corrosive liquids?

A: Yes. With suitable materials such as PP, PVDF, stainless steel, and PTFE diaphragms, the pump can handle various corrosive chemical media.

Q: Does Xiafeng provide customized diaphragm pump solutions?

A: Yes. Xiafeng supports customization of pump materials, motor configurations, structures, and specifications according to different industrial applications.
