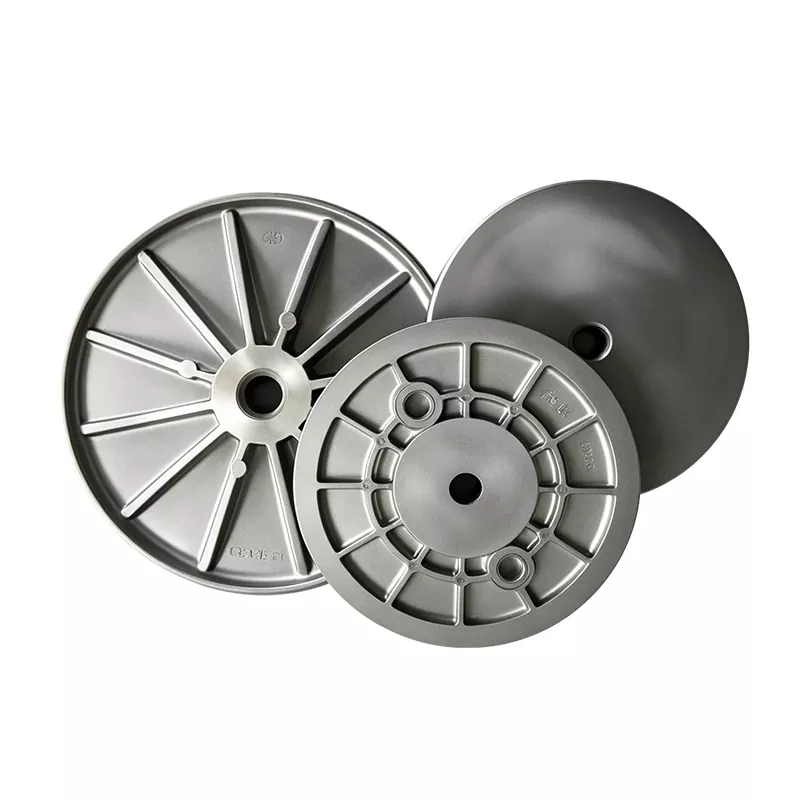

The Aluminum Outer Plate for Pneumatic Diaphragm Pump is a key structural component for pneumatic diaphragm pumps, ensuring mechanical stability and sealing performance. Crafted from precision-machined aluminum alloy, it resists deformation under high pressure and maintains nice airtightness. This part effectively extends pump service life and enhances overall reliability, especially in underground mining environments where vibration and corrosion are common.
| Name | Die cast parts |
| Material | Aluminum Alloy |
| Brand | Zhejiang Xiaofeng |
| Model | Diaphragm pump |
| Rated suction head (M) | 7/7/7 |
| Caliber | 1/1.5/2 |
| Drainage head (M) | 30/50/65 |
| Maximum particle diameter (MM) | 4 |
| Operating temperature (°C) | 0~70 |
| Maximum working pressure (MPA) | 0.7 |
| Drainage flow rate (L/M | N) | 60/250/350 |
| Gas supply pressure (MPA) | 0.4/0.5/0.63 |
| Noise (DBA) | (Sound pressure level: 88/Sound power level: 95) |
| Surface | Acid white surface/Shot blasting treatment/Wire drawing polishing treatment/Mirror polishing treatment |
