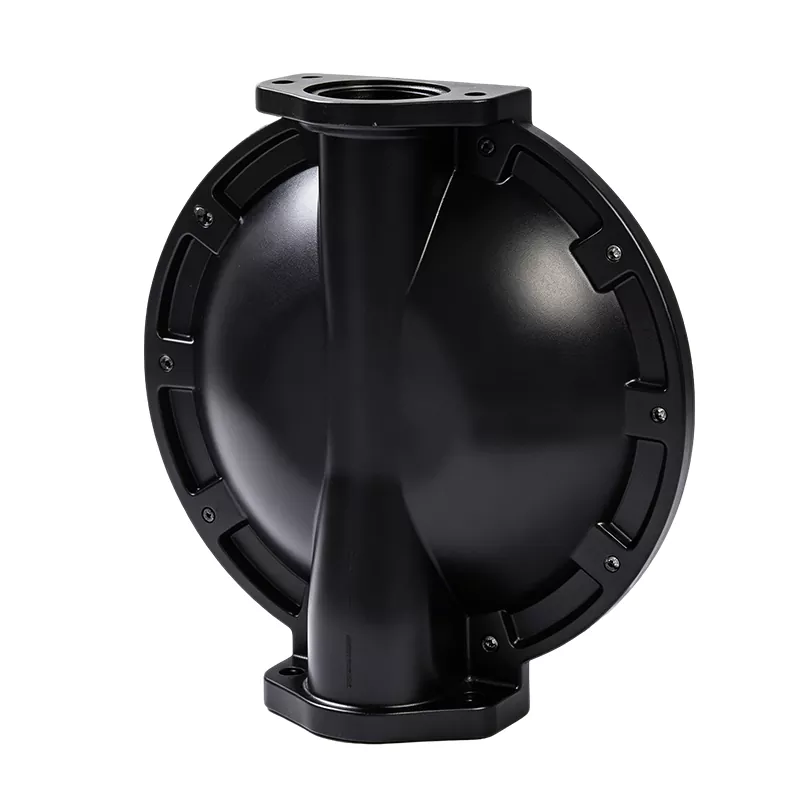

The Aluminum Fluid Cap for pneumatic diaphragm pumps is designed for strength, corrosion resistance, and precise fit. Made from high-grade aluminum alloy, it enhances the pump’s overall durability while maintaining lightweight characteristics for easy installation and maintenance. Its smooth internal surface improves fluid flow efficiency and reduces wear on diaphragms and valves. This component is ideal for mine pneumatic diaphragm pumps requiring stable operation in moisture-rich and dusty environments.
| Model | Flow Rate (m³/h) | Head (m) | Outlet Pressure (kgf/cm²) | Suction Lift (m) | Max Allowed Particle Size φ(mm) | Max Supply Air Pressure (Kgf/cm²) | Max Air Consumption (m³/min) |
| QBY-10 | 0~0.8 | 0~50 | 6 | 5 | 1 | 7 | 0.3 |
| QBY-15 | 0~1 | 0~50 | 6 | 5 | 1 | 7 | 0.3 |
| QBY-25 | 0~2.4 | 0~50 | 6 | 7 | 2.5 | 7 | 0.6 |
| QBY-32 | 0~6 | 0~50 | 6 | 7 | 4.0 | 7 | 0.6 |
| QBY-40 | 0~8 | 0~50 | 6 | 7 | 4.5 | 7 | 0.6 |
| QBY-50 | 0~12 | 0~50 | 6 | 7 | 8 | 7 | 0.9 |
| QBY-65 | 0~16 | 0~50 | 6 | 7 | 8 | 7 | 0.9 |
| QBY-80 | 0~24 | 0~50 | 6 | 7 | 10 | 7 | 1.5 |
| QBY-100 | 0~30 | 0~50 | 6 | 7 | 10 | 7 |
