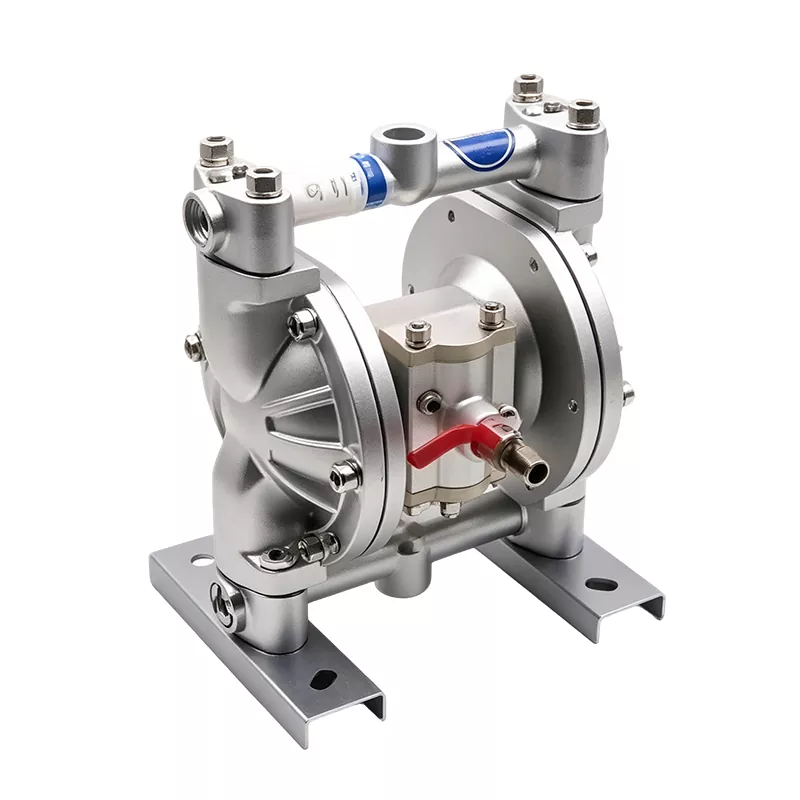

The A10 Model Pneumatic Double Diaphragm Pump is a compact and efficient model developed for flexible use in coal and non-coal mines. Featuring a modular air motor system, it delivers steady flow and anti-stall performance under variable air pressure. Its compact size allows easy installation in narrow mining spaces while maintaining high discharge efficiency for water and slurry. Reliable, explosion-proof, and low-maintenance, the A10 model is a dependable solution for underground fluid management.
| Name | Die cast parts |
| Material | Aluminum Alloy |
| Brand | Zhejiang Xiaofeng |
| Model | Diaphragm pump |
| Rated suction head (M) | 7/7/7 |
| Caliber | 1/1.5/2 |
| Drainage head (M) | 30/50/65 |
| Maximum particle diameter (MM) | 4 |
| Operating temperature (°C) | 0~70 |
| Maximum working pressure (MPA) | 0.7 |
| Drainage flow rate (L/M | N) | 60/250/350 |
| Gas supply pressure (MPA) | 0.4/0.5/0.63 |
| Noise (DBA) | (Sound pressure level: 88/Sound power level: 95) |
| Surface | Acid white surface/Shot blasting treatment/Wire drawing polishing treatment/Mirror polishing treatment |
