The reducer adopts a high-pressure die-cast aluminum alloy housing, which offers lightweight construction, efficient heat dissipation, and excellent dimensional accuracy for continuous production. The worm gear transmission design allows the output shaft to resist reverse driving, providing additional safety in applications requiring positioning and load holding. With flexible options in reduction ratios, mounting structures, machining processes, and casting requirements, Xiafeng delivers customized transmission solutions from gearbox housing casting to finished reducer assembly.

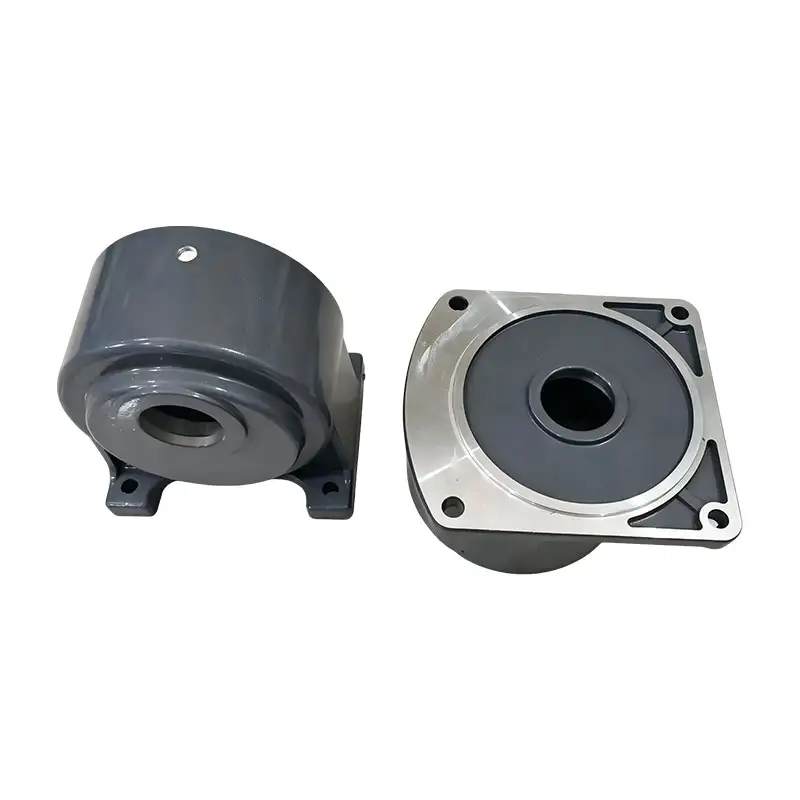

The housing is one of the key structural components affecting gearbox strength, heat dissipation, and service life. Xiafeng Electric Worm Gear Reducer Gearbox Casting uses aluminum alloy housings manufactured through high-pressure die casting technology, achieving consistent dimensions, smooth surface quality, and reliable mechanical performance for batch production.
Compared with traditional cast iron housings, aluminum alloy construction significantly reduces overall weight while improving thermal conductivity. The compact design makes the reducer easier to integrate into automated equipment where installation space and weight control are important considerations.
For customers requiring customized gearbox components, Xiafeng provides casting supply options including raw castings, machined housings, and finished components according to drawings or technical specifications.
The worm gear and worm wheel structure provides a right-angle transmission layout, allowing flexible installation in compact mechanical systems. The transmission mechanism delivers smooth operation with reduced vibration and noise, making it suitable for equipment requiring stable movement control.
The self-locking characteristic prevents the output shaft from driving the input side under certain conditions, providing an additional safety advantage for lifting systems, conveyors, valve actuators, and other applications where reverse movement needs to be limited.
With reduction ratios typically ranging from 5:1 to 100:1, the gearbox can meet different speed and torque requirements for small and medium power transmission systems.
Xiafeng provides customized manufacturing services for worm gear reducer housings and related casting parts. Based on customer drawings, samples, or technical requirements, the company can support mold development, aluminum die casting, machining, surface treatment, and quality inspection.
The integrated manufacturing process helps ensure dimensional consistency and stable supply for equipment manufacturers, automation companies, and industrial distributors.
Whether customers require complete electric worm gear reducers or precision gearbox casting components, Xiafeng provides flexible production solutions for different project requirements.
| Parameter | Specification |
| Product Type | Electric Worm Gear Reducer Gearbox Casting |
| Gear Type | Worm Gear Reducer |
| Housing Material | Aluminum Alloy (High Pressure Die Casting) |
| Reduction Ratio | 5:1 ~ 100:1 |
| Input Power | 0.06 ~ 2.2 kW |
| Output Torque | 3 ~ 200 N·m |
| Input Speed | ≤1500 r/min |
| Transmission Efficiency | 70% ~ 85% |
| Self-Locking Function | Available |
| Installation Method | Horizontal / Vertical / Flange Mounting |
| Noise Level | ≤65 dB |
| Cooling Method | Natural Cooling by Aluminum Housing |
| Supply Scope | Complete Gearbox / Housing Casting / Components |
The compact structure and stable speed reduction performance make the worm gear reducer suitable for conveyor systems requiring controlled speed and reliable operation.
In packaging equipment, the reducer provides accurate transmission control for feeding, positioning, and mechanical movement systems.
The lightweight aluminum housing and low-noise operation make it suitable for compact food machinery and automated processing equipment.
The self-locking characteristic provides additional safety for lifting devices, adjustment mechanisms, and equipment requiring stable positioning.
The reducer is widely integrated into small automation systems, actuators, and mechanical transmission units requiring compact and efficient power conversion.
| Name | G reducer |
| Material | Aluminum Alloy |
| Brand | Zhejiang Xiaofeng |
| Product model | G18/G22/G28/G32 |
| Application | Construction equipment/mechanical equipment, etc |
A: An Electric Worm Gear Reducer Gearbox is a transmission device that uses a worm gear mechanism to reduce motor speed while increasing output torque. It is commonly used in compact mechanical systems requiring stable speed control.
A: Aluminum die casting provides lightweight construction, good heat dissipation, accurate dimensions, and consistent quality for large-volume gearbox production.
A: Yes. The worm gear structure can provide self-locking characteristics, preventing the output shaft from easily driving the input side in applications requiring load holding.
A: Yes. Xiafeng provides aluminum alloy gearbox housing castings, including raw castings, machined parts, and customized components based on customer drawings or samples.
A: Worm gear reducers are widely used in conveyors, packaging machinery, automation equipment, lifting systems, valve drives, and other industrial applications.
A: Yes. Xiafeng supports customization of reduction ratio, mounting structure, housing design, machining process, and assembly requirements for OEM projects.
